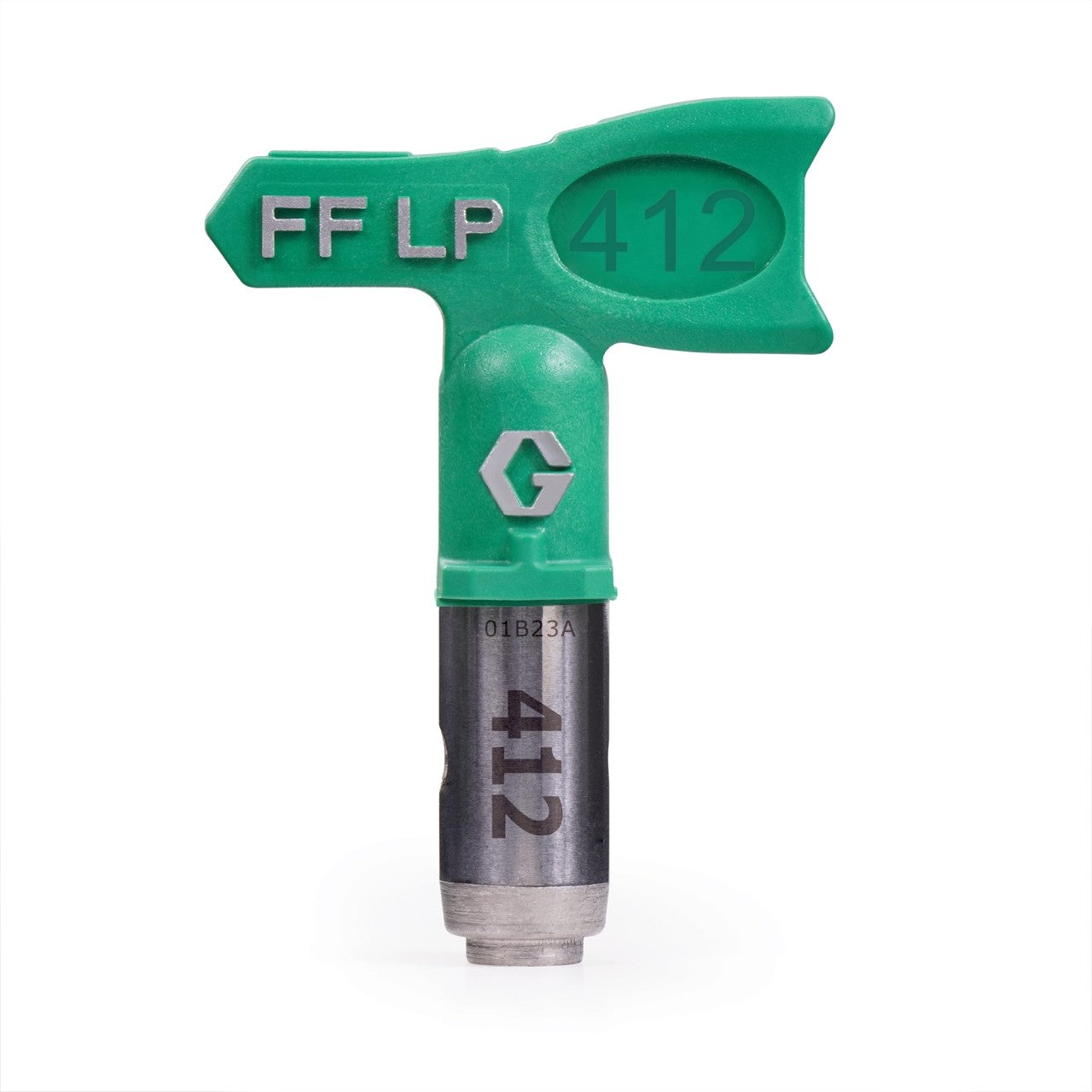

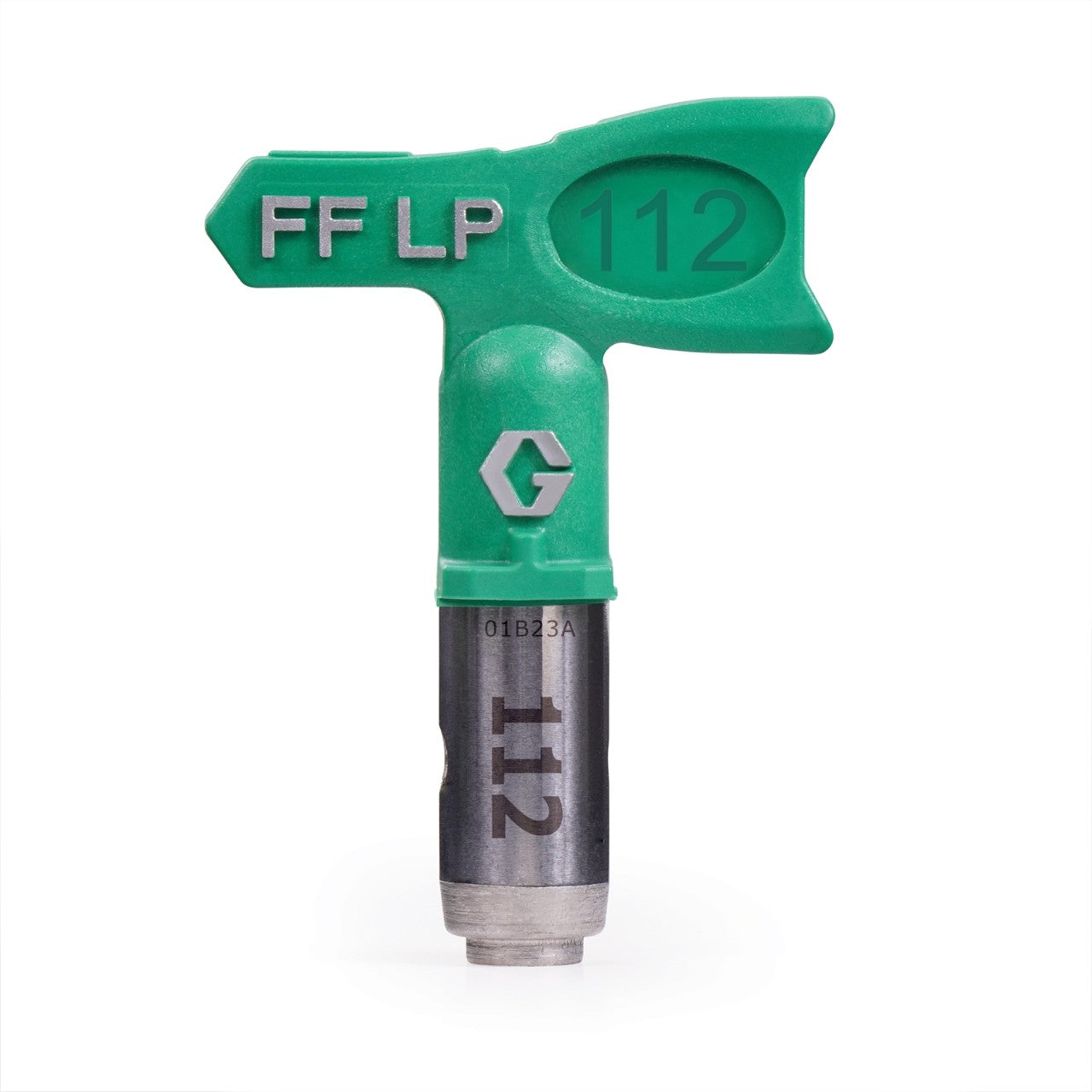

Graco RAC X Fine Finish Low Pressure Airless Spray Tip (FFLP)

Graco RAC X FFLP (Fine Finish Low Pressure) Spray Tips

Spray smoother, more professional finishes with less mess using the Graco RAC X FFLP (Fine Finish Low Pressure) SwitchTip. Built for fine-finish work and thinner materials, FFLP tips let you spray at up to 50% lower pressure, helping reduce overspray, improve control and deliver a cleaner, more even fan. When the tip blocks, simply flip it to Reverse-A-Clean (RAC) to clear the clog in seconds and carry on spraying.

Why choose a Graco RAC X FFLP tip?

Fine-finish results with less overspray:

• Softer spray fan makes overlapping easier for smoother coverage.
• Better control around edges, trim, doors, cabinets and woodwork.
• Less bounce-back helps you put paint where you want it (not in the air).

Less prep, faster clean-up:

• Lower pressure means less airborne mist, so you spend less time masking.
• A cleaner work area and less wasted paint.

Longer tip life, less strain on your sprayer:

• Running at lower pressure can extend tip life and reduce wear on the pump.
• Helps cut downtime and maintenance over time.

SmartTip Technology for better atomisation:

• Internal geometry designed to atomise efficiently at lower pressure.
• Produces a high-quality finish with less effort from the machine.
• Compatible with most airless sprayers (and supports SmartControl features on selected Graco units).

Built for site life (and easy to live with):

• Reverse-A-Clean clears clogs by switching to reverse.
• Raised, easy-read tip numbers stay visible even when paint-covered.
• Locking tab secures the tip in the guard with a positive spray/reverse “click”.
• OneSeal gasket installs without tools (solvent seal available for very hot solvents).

Best for:

Lacquers, stains, enamels, primers and fine-finish paints, anytime you need a cleaner fan pattern and reduced overspray for a more refined finish.

Choosing the right spray tip (it matters more than most people think):

Your spray tip affects finish quality, speed and profit as much as any tool on the job. The right tip can mean:

• Less overspray and masking.
• More control and a better finish.
• Faster completion times.
• Less paint usage.
• Higher profits.

How airless tips work (in 30 seconds):

An airless sprayer pressurises paint and forces it through the tip’s tiny orifice, creating a controlled fan.

• The pump provides: flow + pressure.
• The tip controls: fan width + paint volume.

Understanding tip numbers (simple rule):

Tip sizes are shown as three digits (e.g., 517).

• First digit = fan width at ~10-12 inches from the surface:
  • Multiply it by 2 to get fan width in inches.
  • Example: 5 → 10 inch fan.
• Last two digits = orifice size in thousandths of an inch:
  • Example: 17 → 0.017" (≈ 0.43 mm).

Two critical checks before you spray:

1. Don’t exceed your sprayer’s max tip size (check your machine spec).
2. Match the tip to the material and surface (heavier coatings need larger orifices).

Tip wear: the hidden cost:

Tips wear mainly due to high pressure and abrasive materials. Spraying with a worn tip is like drilling with a blunt drill bit:

• It takes longer.
• Uses more paint.
• Produces a poorer finish.
• Can push your sprayer harder than it should, risking problems.

Bottom line: replacing a worn tip usually costs far less than the extra labour + paint it wastes.
