Graco Edge II HVLP Spray Gun Air Cap

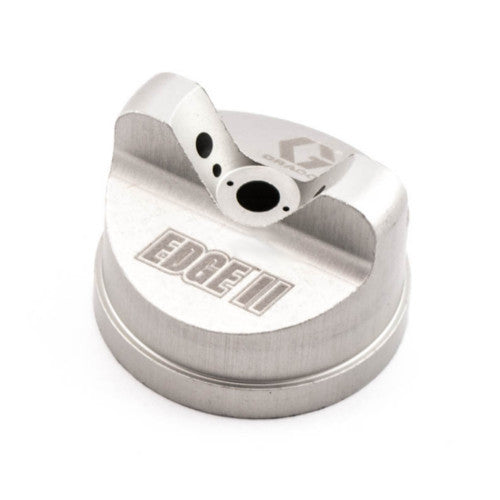

Graco Edge II Air Cap 17P709

The GRACO 17P709 Air Cap is a genuine replacement part for the Graco Edge II HVLP spray gun, designed to deliver a smooth, consistent spray pattern on fine-finish work. By precisely shaping and directing the airflow, it helps you achieve an even, professional finish on doors, furniture, cabinetry and trim with minimal overspray and rework.

Key features & benefits:

• Genuine GRACO Edge II air cap – engineered specifically for the Edge II HVLP spray gun for reliable fit and performance.
• Consistent, even spray pattern – helps produce a smooth, high-quality finish on paints, stains and clear coats.
• Supports independent fluid & air control – works with the Edge II system to fine-tune atomisation for different materials and job types.
• Compatible with SmartStart sprayers – designed to work seamlessly with SmartStart-equipped units for quieter, more efficient operation.
• Durable, corrosion-resistant construction – built from robust materials to withstand regular use in trade environments.

Typical applications:

Ideal for:

• Fine-finish work on doors, frames, skirtings and interiors.
• Furniture and cabinetry spraying.
• Detailed trim and refurbishment jobs.
• Use with a wide range of compatible paints, stains and clear finishes (always follow coating manufacturer’s guidance).

Fitting & maintenance:

• Always switch off and fully depressurise the sprayer before changing the air cap.
• Align the air cap carefully with the gun body and tighten securely without over-torquing.
• Inspect the cap regularly for wear, damage or build-up that could affect the spray pattern.
• Clean after each use to prevent clogging and maintain a consistent finish.
• Replace the air cap if you notice a persistent change in spray quality, pattern shape or atomisation.

Using genuine GRACO parts like the 17P709 air cap helps maintain the performance, safety and warranty of your Edge II HVLP spray gun, ensuring a professional result on every job.
