Graco Edge II HVLP Quick Release Fluid Sets
Payment methods
Secure checkout
Product Features
✔ Fast Click-In Fluid Set Changes: Swap your Graco Edge II HVLP fluid set from the front of the gun in seconds, without a full strip-down. Ideal for decorators moving between stains, lacquers, primers and heavier coatings with less downtime on site.
✔ Genuine Fit for Edge II HVLP Guns: Designed for Graco HVLP Edge II and Edge II Plus spray guns, these quick-release fluid sets give trade users reliable fit, dependable performance and the flexibility to handle fine finishing through to higher-output primer work.
✔ Better Atomisation and Finish Control: Each genuine Graco needle and nozzle set is matched to help maintain a consistent spray pattern, smoother atomisation and cleaner finish quality. Choose the right orifice size to reduce dry spray, flow issues and rework.
| Brand | Graco |
| Type | Spray Accessories |
| Weight | 0.03 kg |
| SKU | 17P485 |
| GTIN / Barcode | 7.55652E+11 |
Product Description

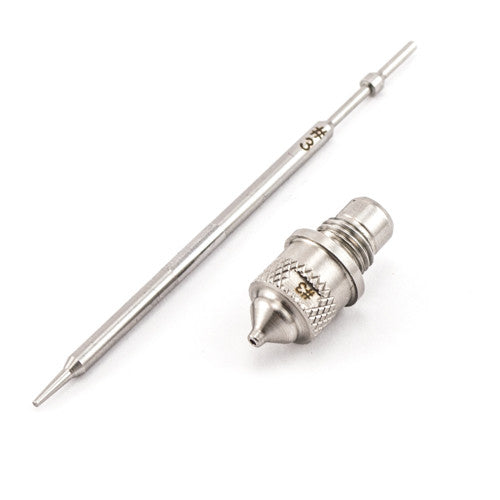

Graco Edge II HVLP Fluid Sets
Upgrade your finish quality and cut downtime with genuine Graco Quick Release Fluid Needle–Nozzle Sets for Graco HVLP Edge II and Edge II Plus spray guns. These front-of-gun “click-in” fluid sets let you swap the needle and nozzle in seconds (no full strip-down), making it easy to match the setup to the coating you’re spraying, whether you’re laying down ultra-fine stains or pushing higher-output primers. The result: more consistent atomisation, fewer issues, and a repeatable finish on site or in the workshop.
Key benefits:
- Quick-release changeover from the front of the gun = less downtime between materials and faster maintenance.
- Matched needle + nozzle helps maintain a consistent fan pattern and finish quality.
- Choose the right orifice for the coating to improve flow, reduce dry spray and minimise rework.
- Genuine Graco parts for correct fit and reliable performance.
Compatibility:
Fits only:
- Graco HVLP Edge II guns: 17P481, 17P653
- Graco HVLP Edge II Plus guns: 17P483, 17P484, 17P654
Not compatible with original Graco Edge guns.
Choose your option:
| Part No. | Fluid Set Size | Orifice | Best for |
|---|---|---|---|
| 17P485 | #2 | 0.8mm (0.032") | Ultra-fine finishing: inks, dyes, non-wiping stains, automotive/refinish work. |
| 17P486 | #3 | 1.3mm (0.051") | Fine finish: lacquers, enamels, epoxies, varnish, urethanes. |
| 17P487 | #4 | 1.8mm (0.071") | Versatile higher-flow finish work: enamels, epoxies, urethanes, varnishes, primers. |
| 17P488 | #5 | 2.2mm (0.087") | Higher output: primers/undercoats, latex and broader coating range where more flow helps. |
| 17P489 | #6 | 2.5mm | High-output, medium-to-heavier coatings: enamels, epoxies, urethanes, varnishes, primers, latex. |
| 17P490 | #7 | 2.8mm | Maximum output for thicker materials & bigger areas: primers, latex, multi-spec / higher viscosity coatings. |
Quick selector:
- Finest work / stains / dyes: go #2.
- Most woodwork & fine finish coatings: #3–#4 is the sweet spot.
- Primers / higher build / need more flow: step up to #5–#7.
Fitting & care:
Always confirm your gun model first, fit the fluid set per Graco guidance, and clean/inspect regularly to maintain a clean spray pattern and prevent build-up. Keeping a spare set ready is a simple way to avoid downtime mid-job.
Frequently Asked Questions
What is a Quick Release Fluid Set and what does it do?
Which spray guns are these fluid sets compatible with?
Which size should I choose (#2–#7)?
What are the part numbers and orifice sizes?
Any fitting and maintenance tips?
